CLIO X14

The authorized distributor of CLIO in China is Shenzhen Hongzhe Technology Co., Ltd. We are the

exclusive distributor for all CLIO products and provide pre-sales and after-sales services for the products.

Product Description

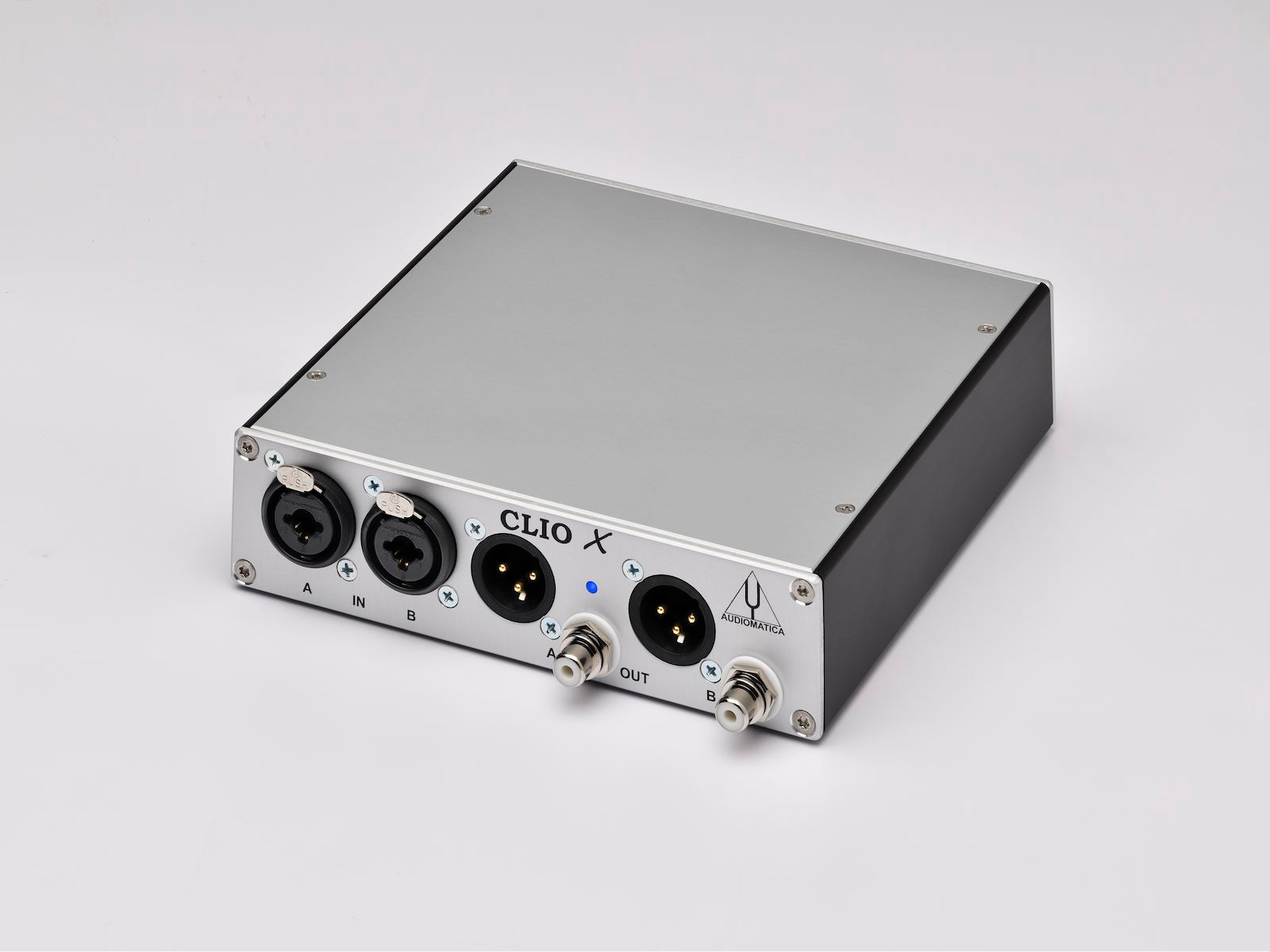

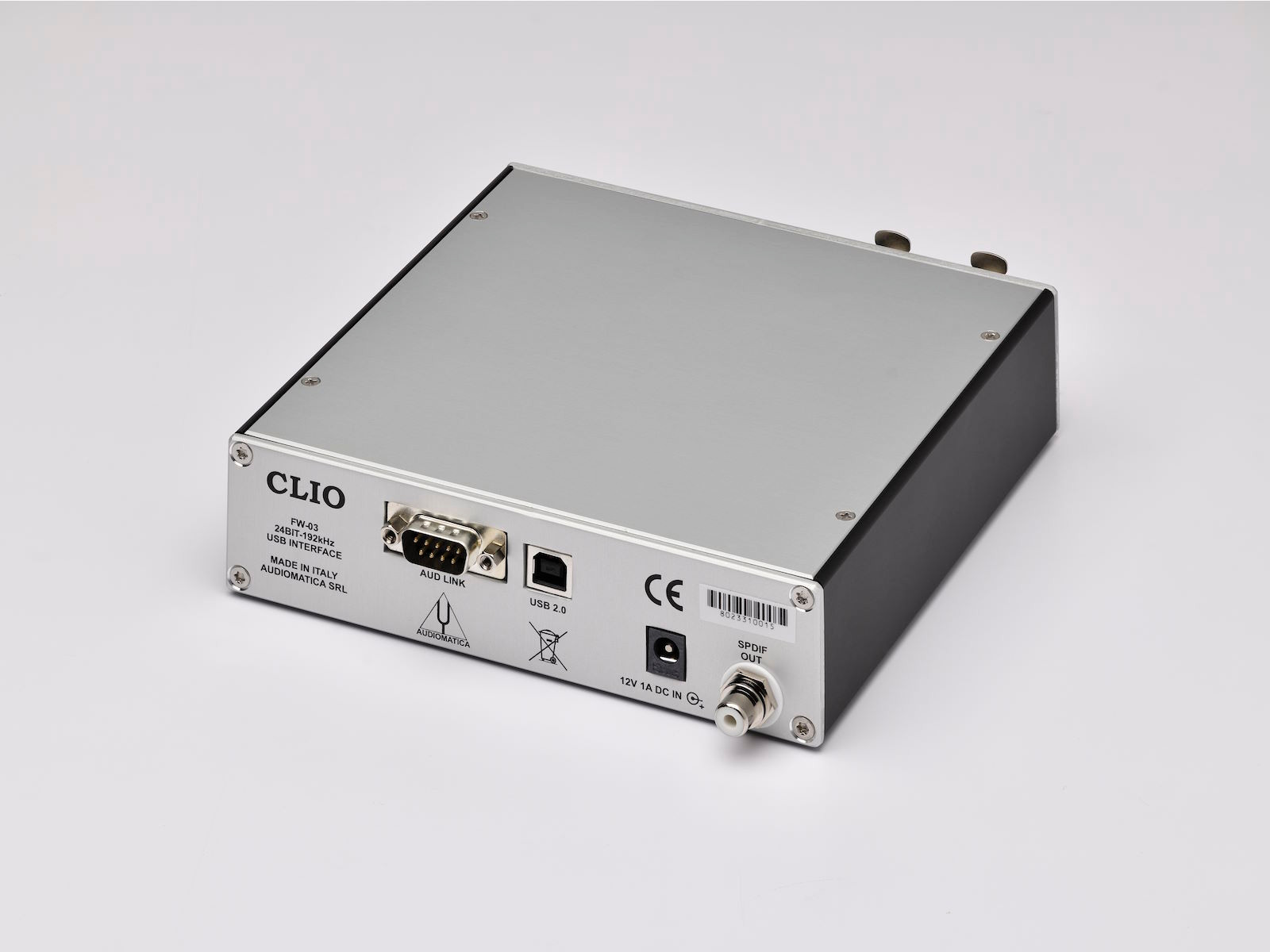

CLIO X is a system: it includes the Audiomatica CLIO FW-03 interface as hardware and runs

either the CLIO 14 STND standard software or the CLIO 14 QC quality control software (which also expands

functions related to quality control). These two components (hardware plus software) cannot operate independently. CLIO 14 is the next stage of development in the CLIO system software product line and is built on the well-known

CLIO measurement suite. CLIO X features newly designed hardware. The CLIO system with CLIO 14 software is a complete audio and electroacoustic measurement instrument, providing

state-of-the-art solutions for laboratory, on-site and production QC applications. CLIO 14 is designed to support and

drive the new CLIO FW-03 hardware and is ready to adapt to its future development. The FW-03 USB audio interface sets a new standard for hardware precision in CLIO systems. CLIO 14 software is the new measurement software for the CLIO system. It is fully compatible with Windows 7, 8, 10 and

11.

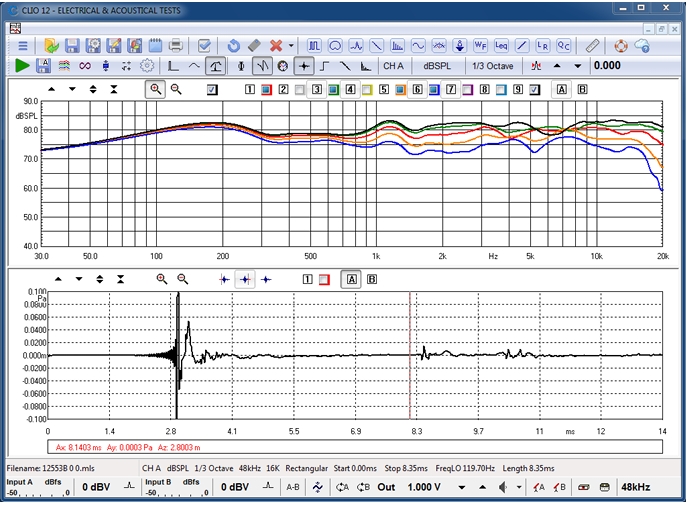

Measurement Technology

Compared with other measurement systems, CLIO integrates the functions of many

different instruments into one. There are three distinct measurement technologies available for system identification and

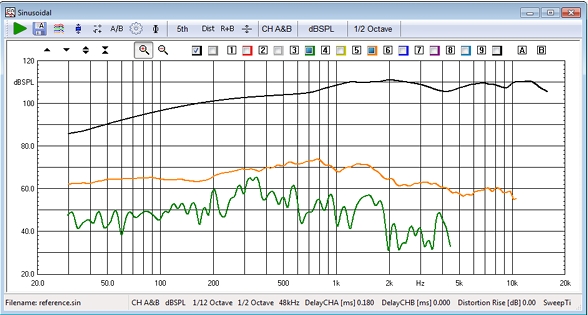

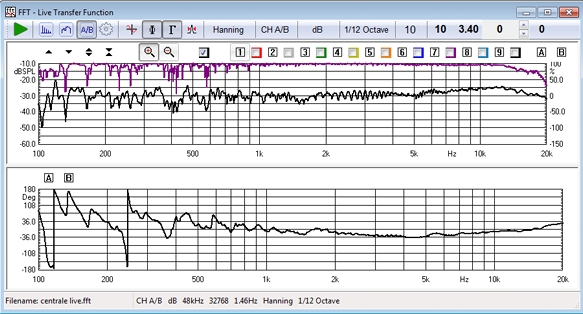

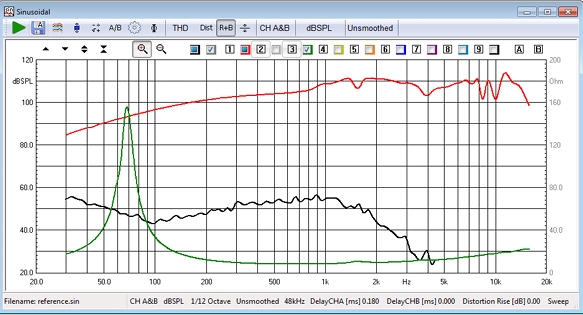

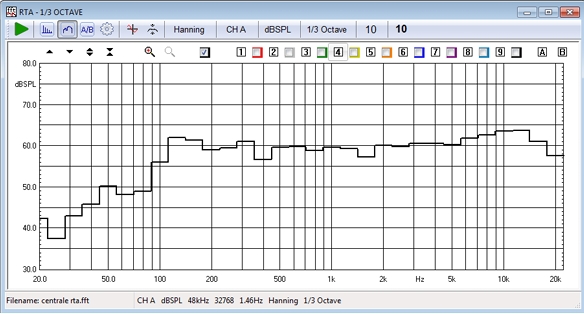

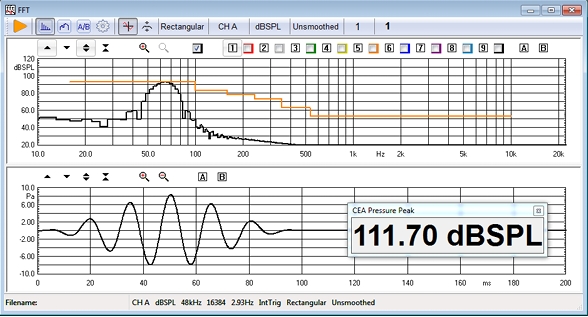

characterization: - MLS & LogChirp: Utilizes pseudo-random noise or logarithmic chirp as stimuli - Sine Sweep: Employs sine signals for scanning - FFT, RTA, and 'Live' Transfer Function: Allow you to select any stimulus, even music While other instruments only offer one possible measurement option, CLIO enables you to examine physical phenomena—

such as frequency response, impedance, or other parameters—from different perspectives. The final results are then verified

through the consistency of these measurements: as any professional technician knows, this is the correct approach that should

always be adopted.The following dedicated control panels are designed for other specific measurements: - Linearity and Distortion: Measures the nonlinear behavior of electronic devices - Sound Level Meter: An IEC61672-compliant device that integrates a sound level meter with Leq and frequency analysis - Interactive L-C-R Bridge: Enables dynamic measurement of passive components - Wow & Flutter Meter: Features time and frequency analysis capabilities - Frequency Counter - Direct STIPA Rating In addition to measurement results, you also gain access to sophisticated post-processing tools for: - Thiele & Small parameters for speaker characterization - ISO 3382 acoustic parameters, including indirect STI and STIPA for room and auditorium characterization - Directional analysis of speakers, such as 2D color plots, polar or waterfall plots, or 3D balloon analysis (available only in the QC version), for comprehensive spatial characterization - Time-frequency analysis for evaluating cumulative spectral decay, energy time-frequency, wavelet analysis, and periodic wavelet analysis. Presented as 3D plots or color graphs. - Loudness level calculator for assessing RLR, SLR, and STMR (available only in the QC version)Using all the aforementioned measurement and post-processing technologies, powerful quality

Using all the above measurement and post-processing technologies, powerful quality control scripts can be customized to manage and identify the production line of any electronic or electroacoustic equipment.

Main Functions of CLIO 14	Standard Version	QC Version
MLS & LOG Chirp
Directionality
Time-frequency analysis
Acoustic parameters, STI/STIPA
FFT, RTA and real-time transmission function
sine
multimeter
THIELE&SMALL parameter
Wow & tremble
Leq analysis
Linearity and distortion
QCBOX control
1-D dial control
3D turntable control
3-D balloon
Fast track RUB&BUZZ
Loudness level
QC script processor
LPT controller (*)
WINDOWS audio device control
