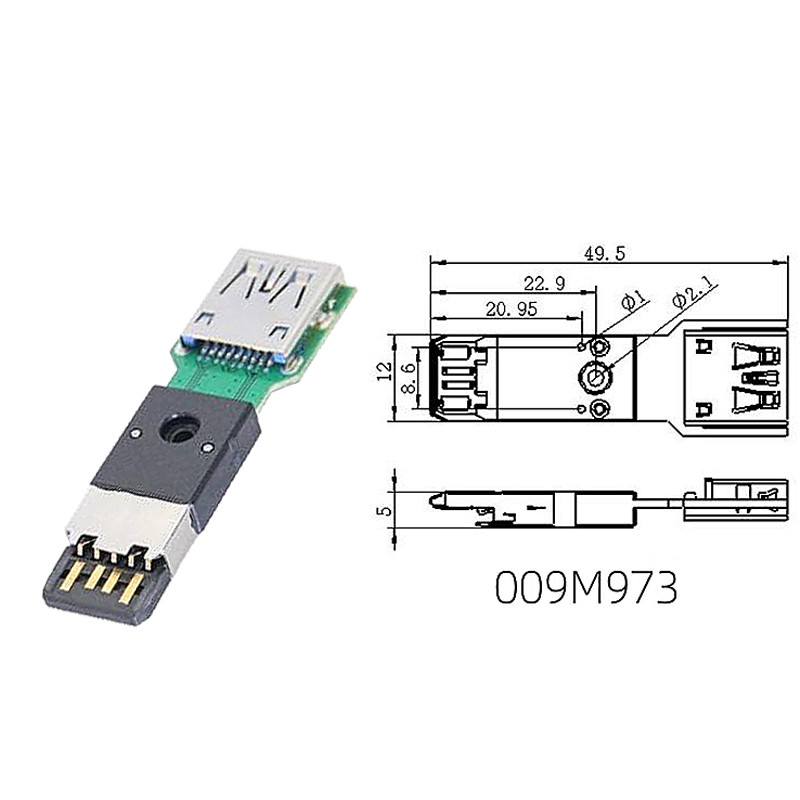

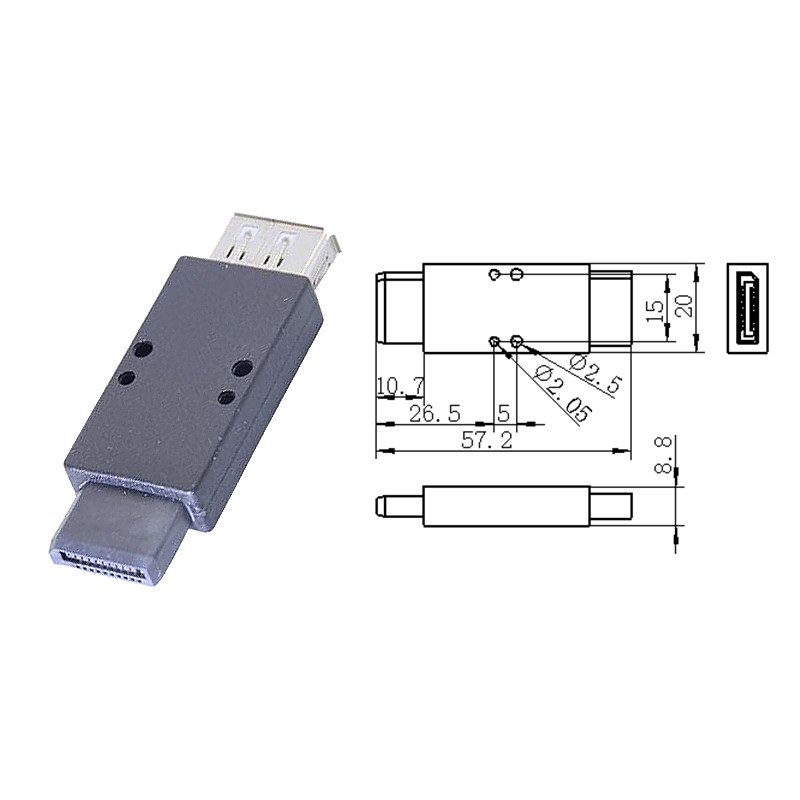

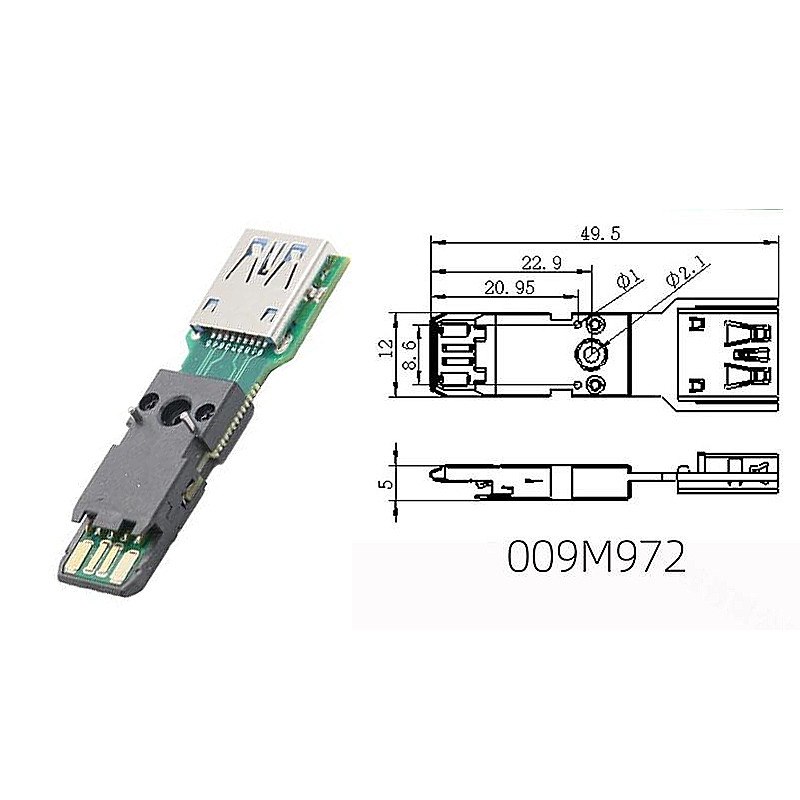

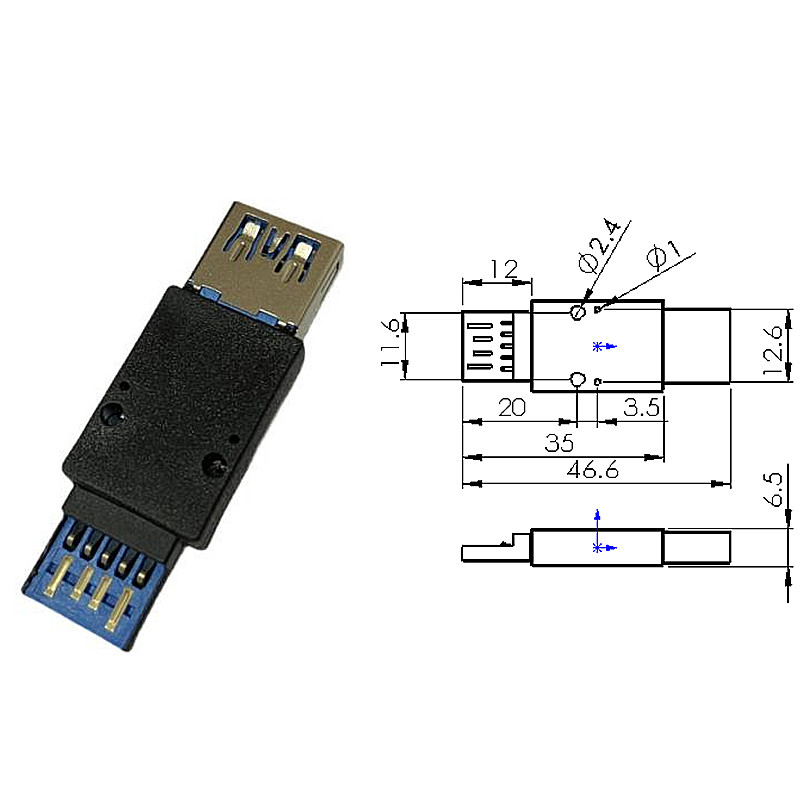

USB Audio Test Header

The USB Audio Test Header is a specialized tool designed for testing the USB interfaces and audio performance of audio devices. Its core function is to verify interface connectivity, signal transmission, and audio output quality.

Core Functions

• Detect the electrical performance of USB interfaces, including voltage stability, data transfer rate, and connection reliability.

• Verify the integrity of audio signals, covering key indicators such as signal-to-noise ratio (SNR), distortion rate, and frequency response.

• Be compatible with various types of audio devices, such as headphones, speakers, sound cards, and other audio products equipped with USB interfaces.

Key Features

• Strong interface adaptability, supporting common interface types like USB-A, USB-C, and Micro-USB.

• Equipped with rapid testing capability, enabling efficient completion of basic items such as continuity testing and signal attenuation testing.

• Some high-end models have a built-in data acquisition module, which can provide real-time feedback on test data and generate reports.

Application Scenarios

• Production lines of audio devices, used for pre-delivery random quality inspections and batch testing.

• Maintenance scenarios, assisting in diagnosing USB interface faults or audio signal transmission issues.

• R&D phases, helping engineers optimize the USB audio transmission solutions of products.
