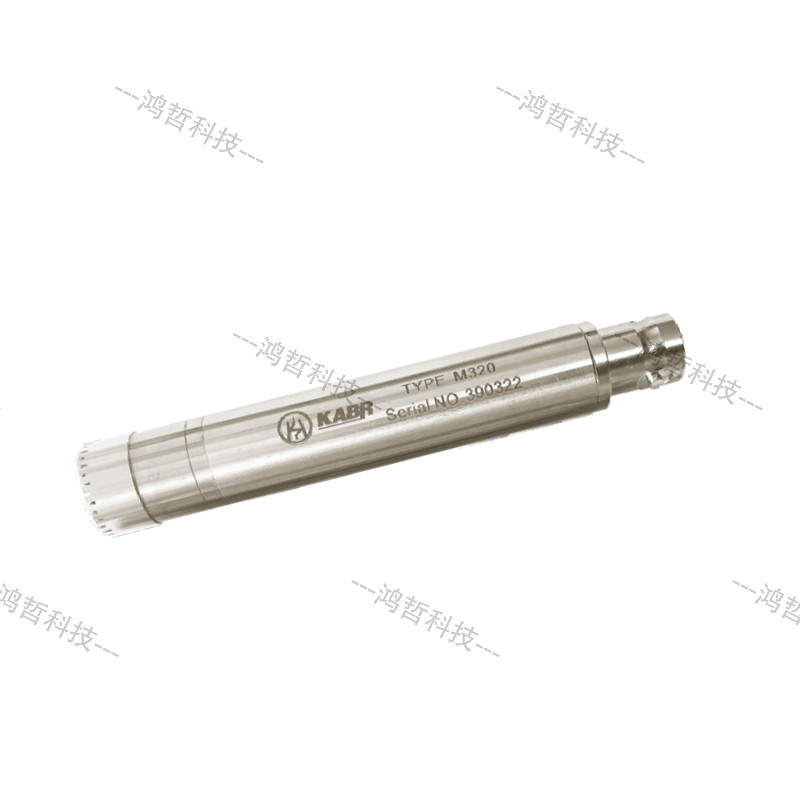

KABR M320 Microphone Specifications

The KABR M320 is a 1/2-inch free-field microphone. It features excellent corrosion resistance, sturdiness, and extremely high stability, making it suitable for measurements in non-reflective free-field and semi-free-field environments. Adopting a pre-polarized design, it requires no external polarization voltage and is compatible with preamplifiers powered by ICCP.

The KABR M320 utilizes a post-equalization method, with a frequency range of 3.15 Hz to 20 kHz and the ability to measure sound pressure levels (SPL) up to 146 dB. It is ideal for high-precision general acoustic measurements and can also be used with instruments such as sound level meters, multi-channel analyzers, noise analyzers, and electroacoustic testers. Each KABR M320 comes with an independent calibration data sheet before leaving the factory, which includes information such as sensitivity and frequency response.

Application Scenario

• Electroacoustic applications

Technical Parameters

• Type: 1/2-inch free-field microphone

• Polarization: Pre-polarized microphone

• Frequency Response: 20 ~ 20 kHz

• Power Supply: ICP 24V 4mA

• Polar Pattern: Omnidirectional

• Dynamic Range: 16 - 145 dB

• Interface: BNC

• Length: 83 mm
