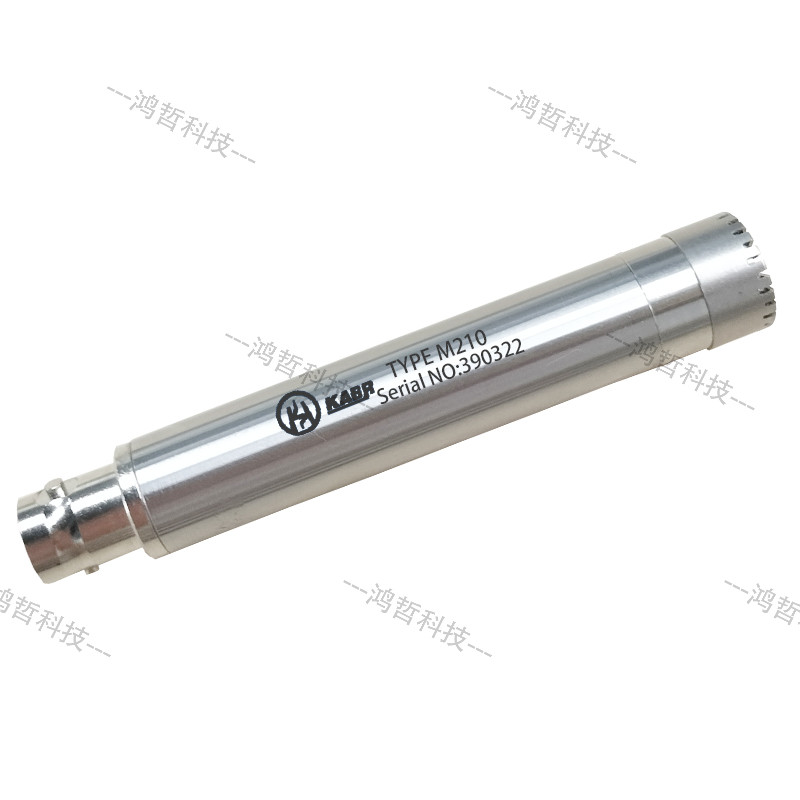

Microphone KABR M210

KABR M210 1/2-inch free-field microphone features excellent corrosion resistance and sturdiness, along with extremely high stability. It is suitable for acoustic testing in free-field and semi-free-field environments, and is compatible with ICP-powered microphone power supplies. Its frequency range is 10 Hz ~ 20 kHz. The KABR M210 is applicable for on-line acoustic measurement, and can also be used with instruments such as sound level meters, multi-channel analyzers, noise analyzers, and electroacoustic testers. Each KABR M210 comes with an independent calibration data sheet before leaving the factory, which includes information such as sensitivity and frequency response.

Application Scenarios

• Noise analysis

• Environmental noise monitoring

Technical Parameters

• Microphone Type: 1/2-inch free-field microphone

• Microphone Category: Pre-polarized microphone

• Frequency Response: 20 ~ 20 kHz

• Power Supply: ICP 24V 4mA

• Polar Pattern: Omnidirectional

• Dynamic Range: 20 - 140 dB

• Interface: BNC

• Length: 78 mm
